High Precision Digital Die Cutting Solution for Label & Printing Industry

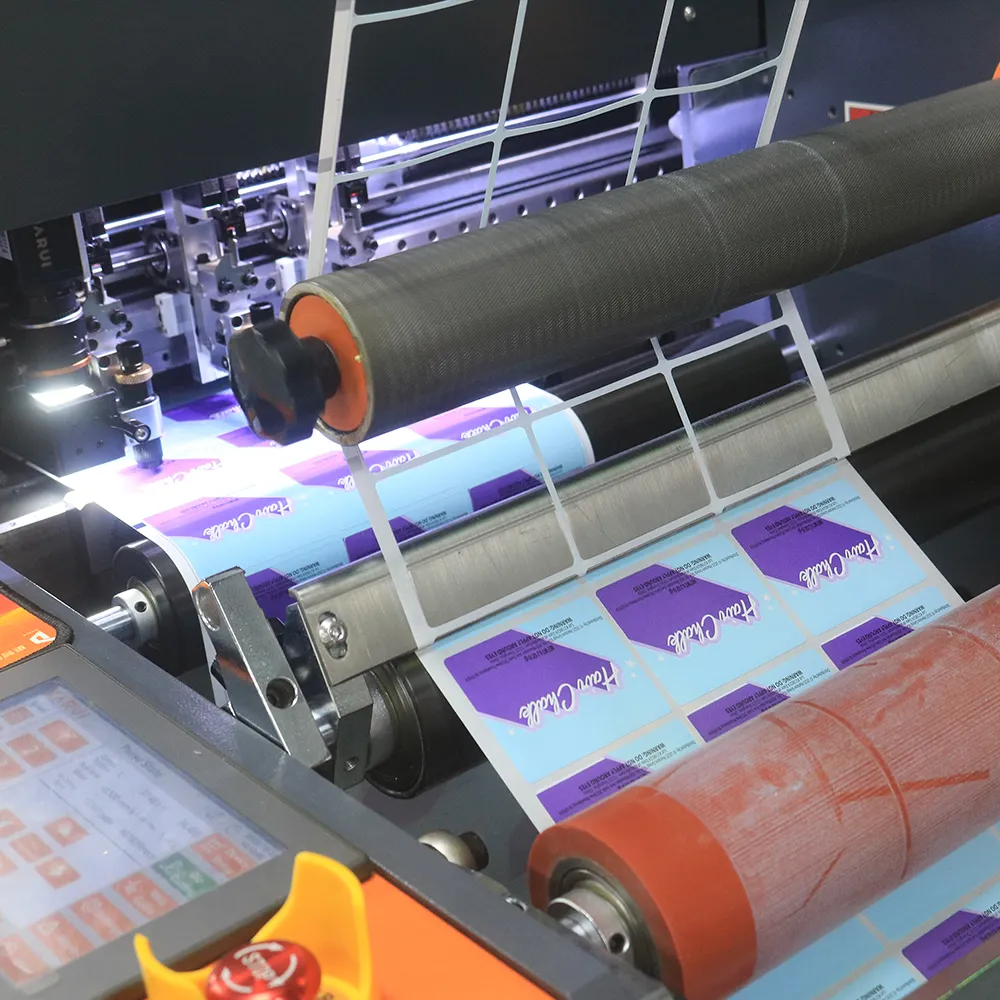

S7 Digital Die Cutter
The S7 Digital Die Cutter uses advanced digital cutting technology to replace traditional physical dies. By reading cutting files directly from the system,the machine performs precise cutting automatically without mold preparation. A professional digital die cutting machine designed for label manufacturers, packaging factories, and OEM production lines.
|
Why Choose S7 Digital Die Cutter?
• 0.1 mm High Cutting Accuracy • No Physical Die Required - Lower Cost & Faster Setup • Supports Multiple Label Materials • Stable Performance for 24/7 Industrial Production DARUI • Factory Direct Supply with OEM / ODM Service.Adjust the knife pressure automatically |
Why Choose S7 Digital Die Cutter?
• 0.1 mm High Cutting Accuracy
• No Physical Die Required - Lower Cost & Faster Setup
• Supports Multiple Label Materials
• Stable Performance for 24/7 Industrial Production DARUI
• Factory Direct Supply with OEM / ODM Service.Adjust the knife pressure automatically
S7 Digital Die Cutter vs Traditional Die Cutting
|
S7 Digital Die Cutter |
Traditional Die Cutting |
|
No Physical Die Needed |
Requires Metal Die |
|
Fast Setup |
Long Preparation Time |
|
Suitable for Small Batch |
Only for Mass Production |
|
Lower Cost |
High Tooling Cost |
|
Flexible Design Change |
Inflexible |
Label printing factories handling small batch orders Packaging manufacturers with multiple SKUs OEM label producers needing fast delivery
S7 Digital Die Cutter vs Traditional Die Cutting
|
S7 Digital Die Cutter |
Traditional Die Cutting |
|
No Physical Die Needed |
Requires Metal Die |
|
Fast Setup |
Long Preparation Time |
|
Suitable for Small Batch |
Only for Mass Production |
|
Lower Cost |
High Tooling Cost |
|
Flexible Design Change |
Inflexible |
Label printing factories handling small batch orders Packaging manufacturers with multiple SKUs OEM label producers needing fast delivery
High Speed • High Precision • Fully Digital
Darui is a China-based technology-driven enterprise specializing in label printers and label post-press equipment that independently develops and manufactures such machinery and operates ts own label printing factory with over 20 years of Industry experience. Digital label finishing machine die cutting solution for labels.
 |
 |
 |

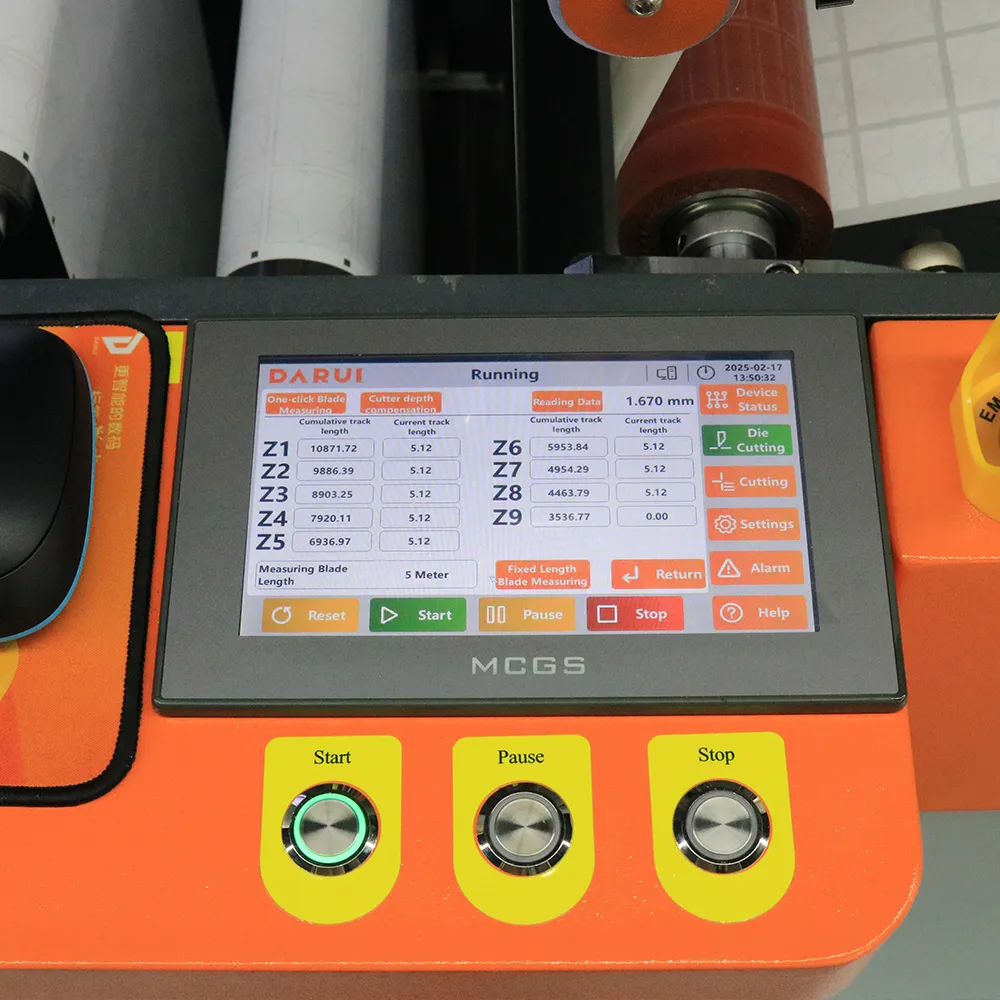

| 3 Cutting Mode Optional | High Precisions Feeding System | Adjust The Knife Pressure Automatically |
 |
 |
 |

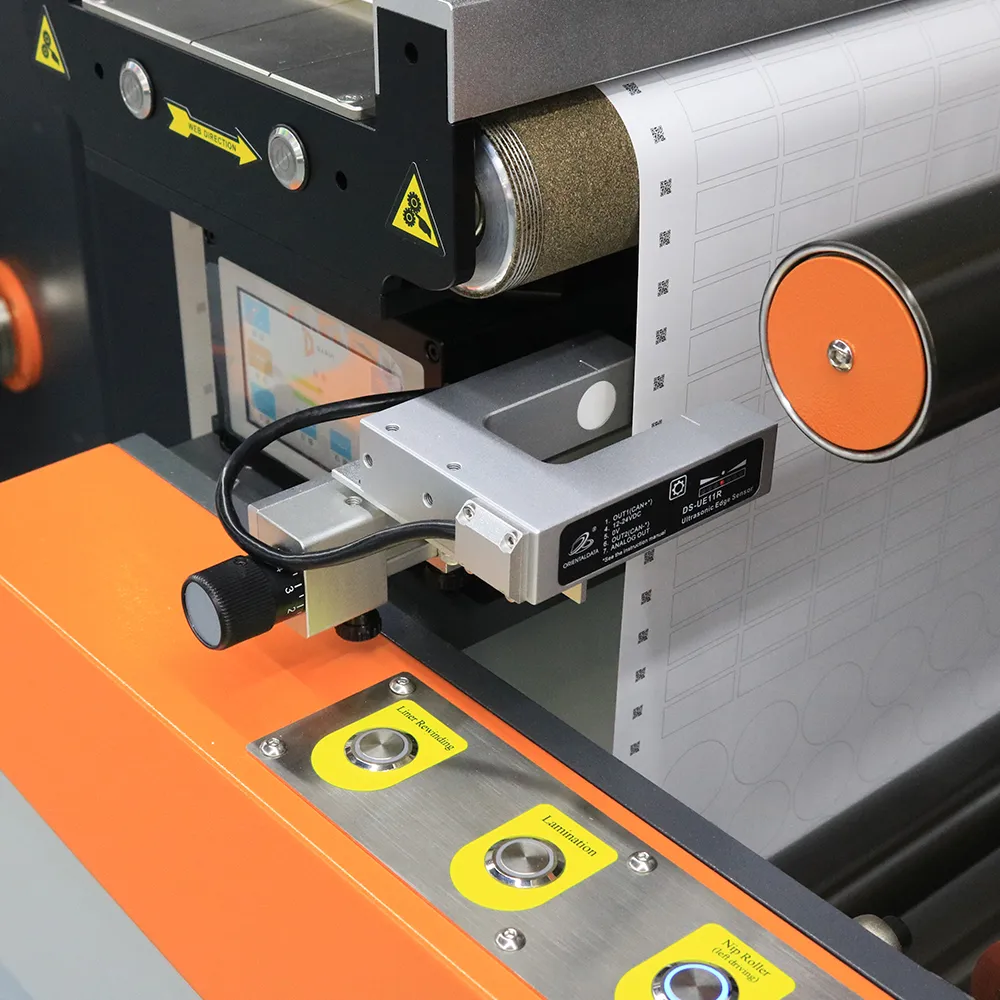

| Auto Web Guide | Integrated casting | Three-bladecutting |
 |
 |
 |
| Matrix Removel | Lamination | Independent servo motor |
High Speed • High Precision • Fully Digital
Darui is a China-based technology-driven enterprise specializing in label printers and label post-press equipment that independently develops and manufactures such machinery and operates ts own label printing factory with over 20 years of Industry experience. Digital label finishing machine die cutting solution for labels.
|
|
|
| 3 Cutting Mode Optional | High Precisions Feeding System | Adjust The Knife Pressure Automatically |
|
|
|
| Auto Web Guide | Integrated casting | Three-bladecutting |
|
|
|
| Matrix Removel | Lamination | Independent servo motor |
|
Specifications
|
S7 Digital Knife Die-Cutter Plotter

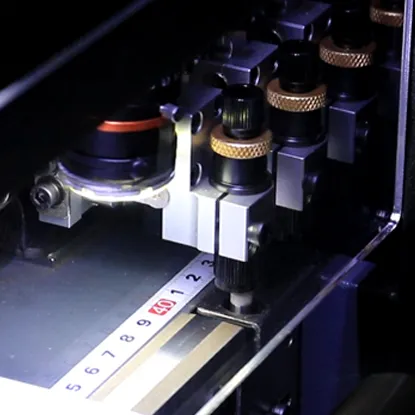

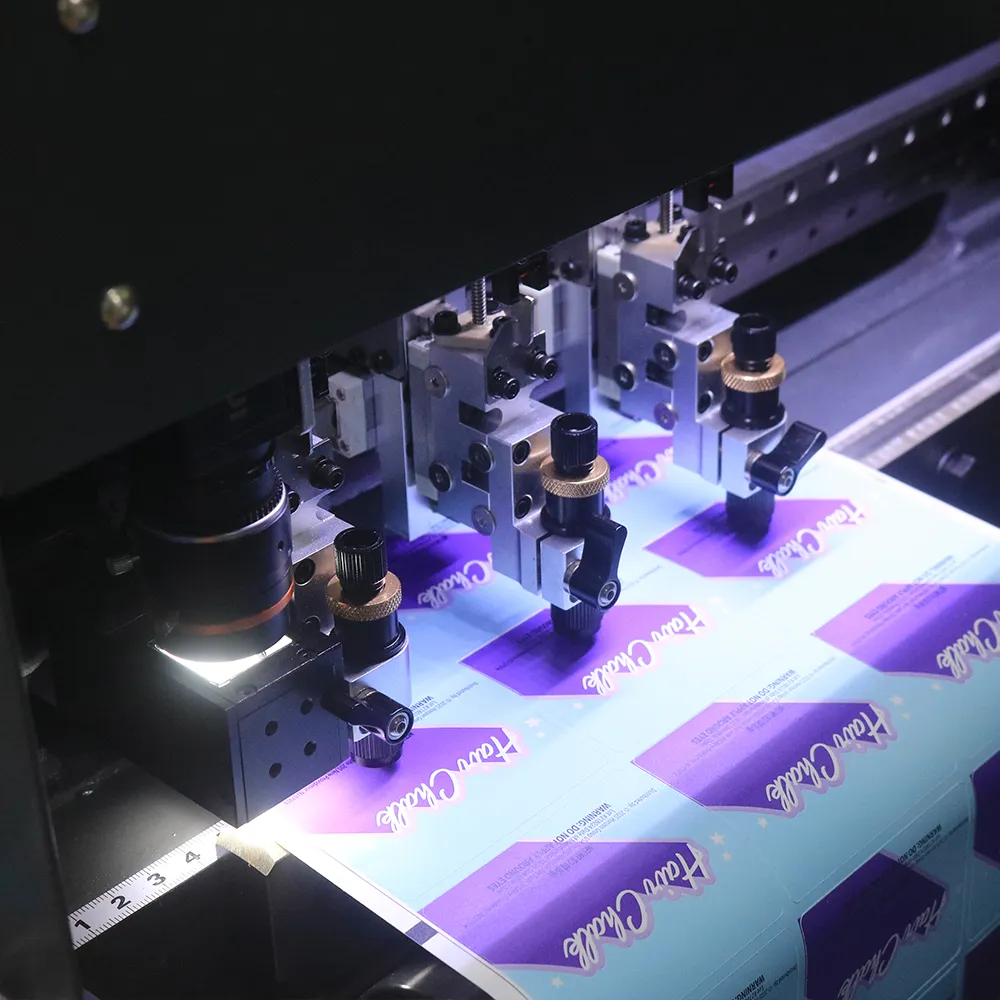

3 Blades Head Optional 1. Controller. General performance, positioning time 0.3 seconds per Plate. 2. Cutting speed: Max speed17 meters per minute. 3. Blade heads:3blade heads. suitable for large area orders. 4. There is no automatic tool pressure measurement system. 5. Max Length Label: 700mm. |
Specifications
|
Model No. |
S7 |
|
Cutting Precision |
0.1mm |
|
Meas |
1550mm*1150mm*1530mm |
|
Die-cutting Speed |
0-10min/m |
|
Weight |
800kg |
|
Working Voltage |
AC220V |
|
Cutting Blades |
3PCS |
|
Equipment Structure |
Roll To Roll |
|
Die-cutting Positioning |
CCD Camera + OR Code Automatic Die Cutting |
|
Total Output |
1.5kw |
|
Applicable Material |
Stickers, Label Paper, PET And Other Film Label |
|
Operafing Surrounding |
Humidity: 40%-70% Temperature: 20-30℃ |
S7 Digital Knife Die-Cutter Plotter
3 Blades Head Optional
1. Controller. General performance, positioning time 0.3 seconds per Plate.
2. Cutting speed: Max speed17 meters per minute.

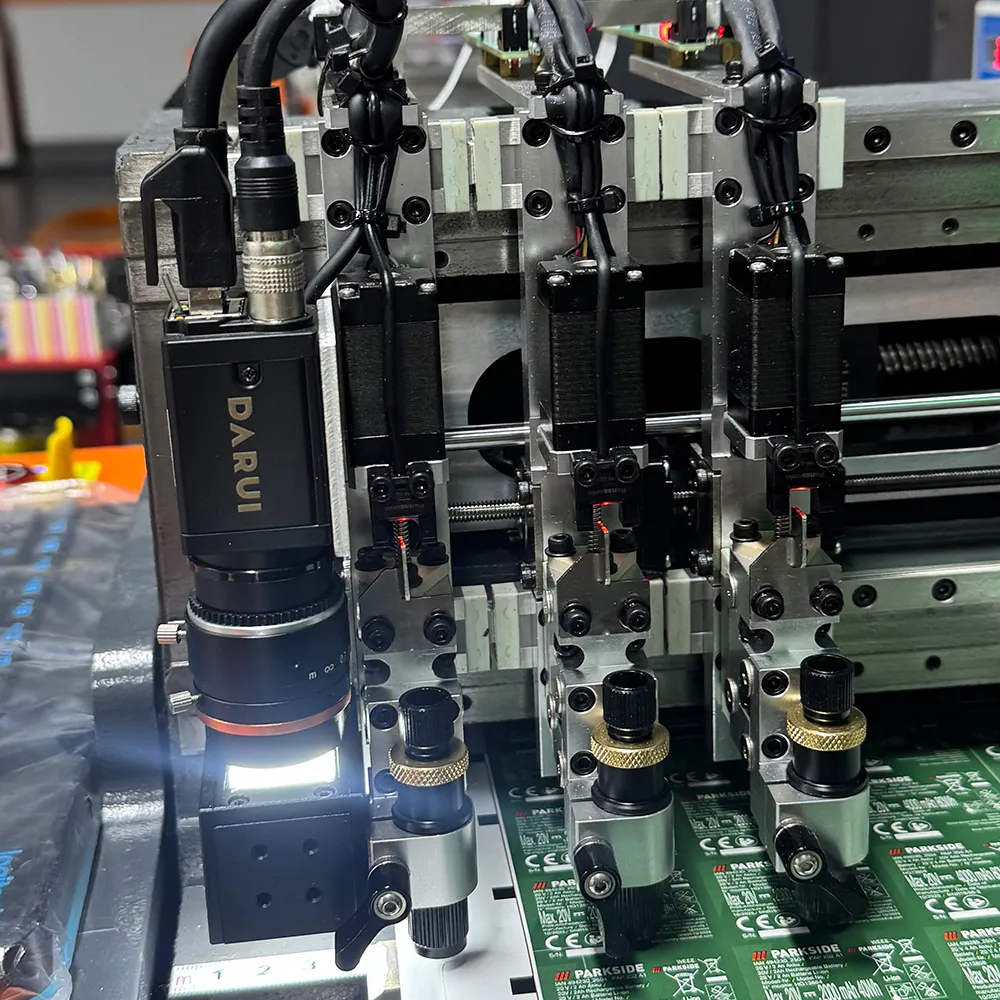

3. Blade heads:3blade heads. suitable for large area orders.
4. There is no automatic tool pressure measurement system.
5. Max Length Label: 700mm.
|
Application
Coated Paper/ Matte Paper/ PET/ PC/ PP/ Coated paper /Special Paper / Garments Label PVC/ PE
Typical Applications: Label Printing Factories / Packaging Manufacturer OEM/ODM Label Producers industrial Product Identification Promotional & Customized Labels
Application Advantage: Digital Die Cutter helps manufacturers handle multi-SKU, small-batch, and urgent orders with lower cost and higher flexibility. |
 |
Application
Applicable Materials:
Coated Paper/ Matte Paper/ PET/ PC/ PP/ Coated paper /Special Paper / Garments Label PVC/ PE
Typical Applications:
Label Printing Factories / Packaging Manufacturer OEM/ODM Label Producers industrial Product Identification Promotional & Customized Labels
Application Advantage:
Digital Die Cutter helps manufacturers handle multi-SKU, small-batch, and urgent orders with lower cost and higher flexibility.
 |
Custom machine colour
A bespoke unit in charcoal grey, tailored to the client's specifications. |
Custom machine colour
Machine colours can be customised to suit your market, creating a fresh brand identity.
A bespoke unit in charcoal grey, tailored to the client's specifications.
