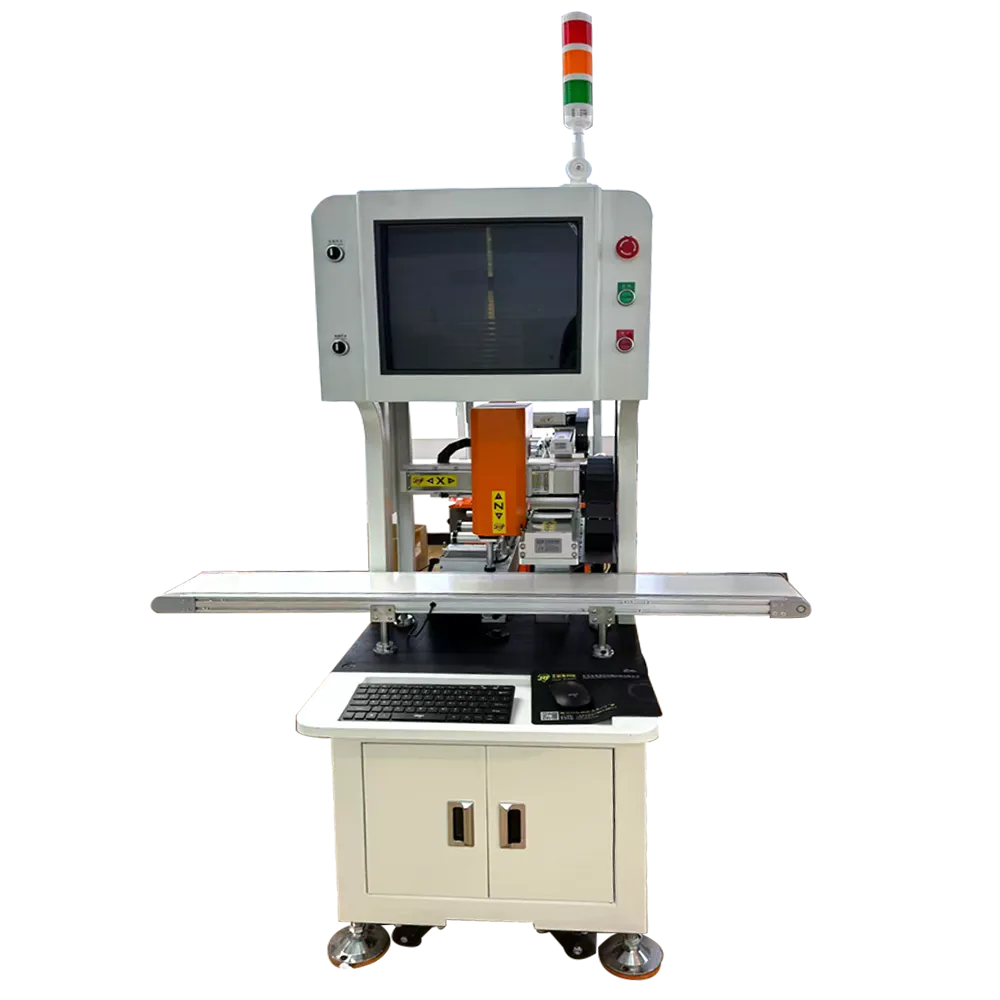

V1 Single Head Single Feeder Vision Bonding Machine

This machine is designed for automatic label sticking & film lamination for flat products in multiple industries: 3C electronic accessories, plastic, metal hardware, mobile phone parts, auto components, new energy products, cosmetics, toys, packaging, die-cutting materials, all self-adhesive back labels & protective films.

Why Choose V1 Single Head Single Feeder Vision Bonding Machine?

• Ultra High Labeling Precision Dual CCD camera real-time visual positioning, automatic coordinate deviation compensation, labeling error controlled within ±0.2mm.

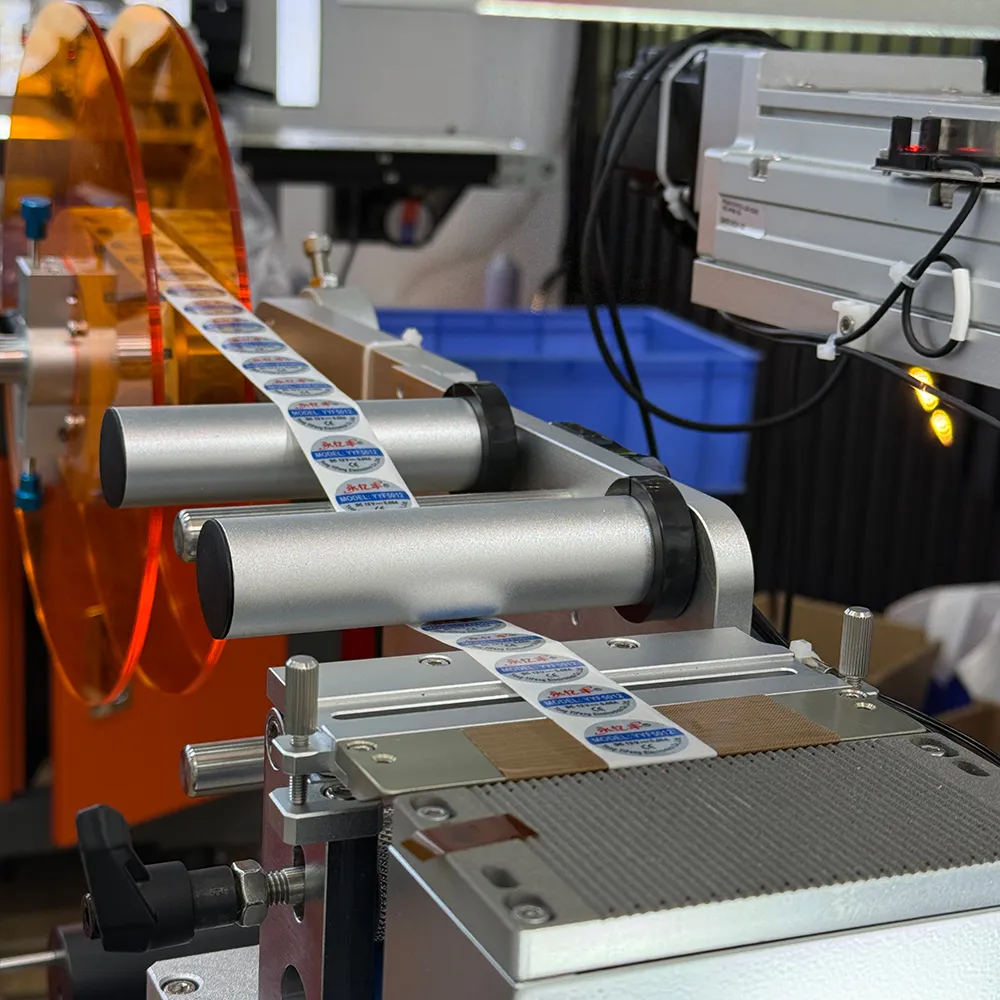

• High Efficient Continuous Production Max 1800 pieces per hour stable output, automatic flying feeder realizes automatic label peeling & feeding, no manual label tearing, greatly cut labor cost and improve production capacity.

• Wide Compatibility for Workpieces & Labels Supports round, square, irregular self-adhesive labels, protective film, foam double-sided tape, silicone back glue.

• Top-Grade Global Brand Hardware Adopts Taiwan linear guide modules, mainstream brand servo/stepper motors, Hikvision industrial visual equipment, marble anti-vibration base, low failure rate and long service life.

• User-Friendly Independent R&D Visual Software Full English touch screen operation interface, one-click save product parameter programs, quick mold switching.

• Assembly Line Docking Design Built-in adjustable conveyor line, can be connected with front and rear automation equipment to realize fully unmanned automatic production line.

Why Choose V1 Single Head Single Feeder Vision Bonding Machine?

• Ultra High Labeling Precision Dual CCD camera real-time visual positioning, automatic coordinate deviation compensation, labeling error controlled within ±0.2mm.

• High Efficient Continuous Production Max 1800 pieces per hour stable output, automatic flying feeder realizes automatic label peeling & feeding, no manual label tearing, greatly cut labor cost and improve production capacity.

• Wide Compatibility for Workpieces & Labels Supports round, square, irregular self-adhesive labels, protective film, foam double-sided tape, silicone back glue.

• Top-Grade Global Brand Hardware Adopts Taiwan linear guide modules, mainstream brand servo/stepper motors, Hikvision industrial visual equipment, marble anti-vibration base, low failure rate and long service life.

• User-Friendly Independent R&D Visual Software Full English touch screen operation interface, one-click save product parameter programs, quick mold switching.

• Assembly Line Docking Design Built-in adjustable conveyor line, can be connected with front and rear automation equipment to realize fully unmanned automatic production line.

REQUEST A QUOTE

ㅤ

High Speed • High Precision • Fully Digital

Darui is a China-based technology-driven enterprise specializing in label printers and label post-press equipment that independently develops and manufactures such machinery and operates ts own label printing factory with over 20 years of Industry experience.

digital label finishing machine die cutting solution for labels

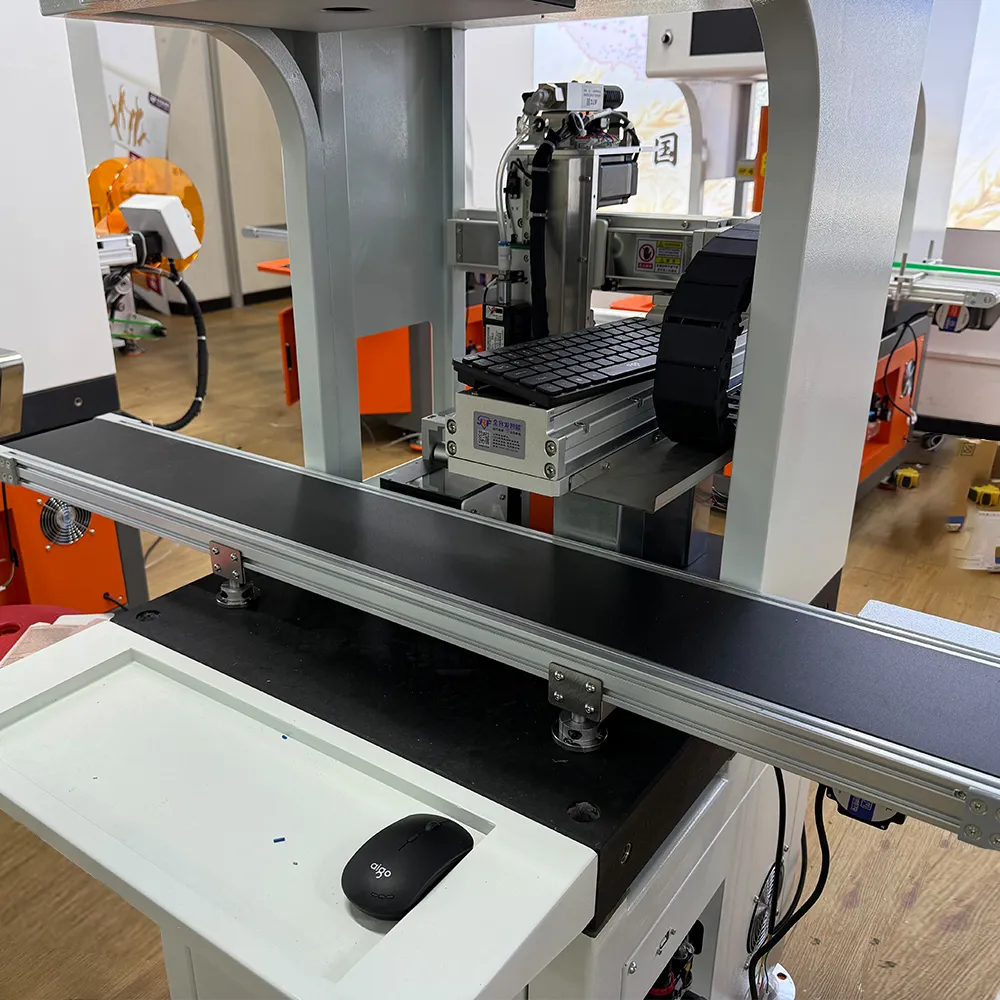

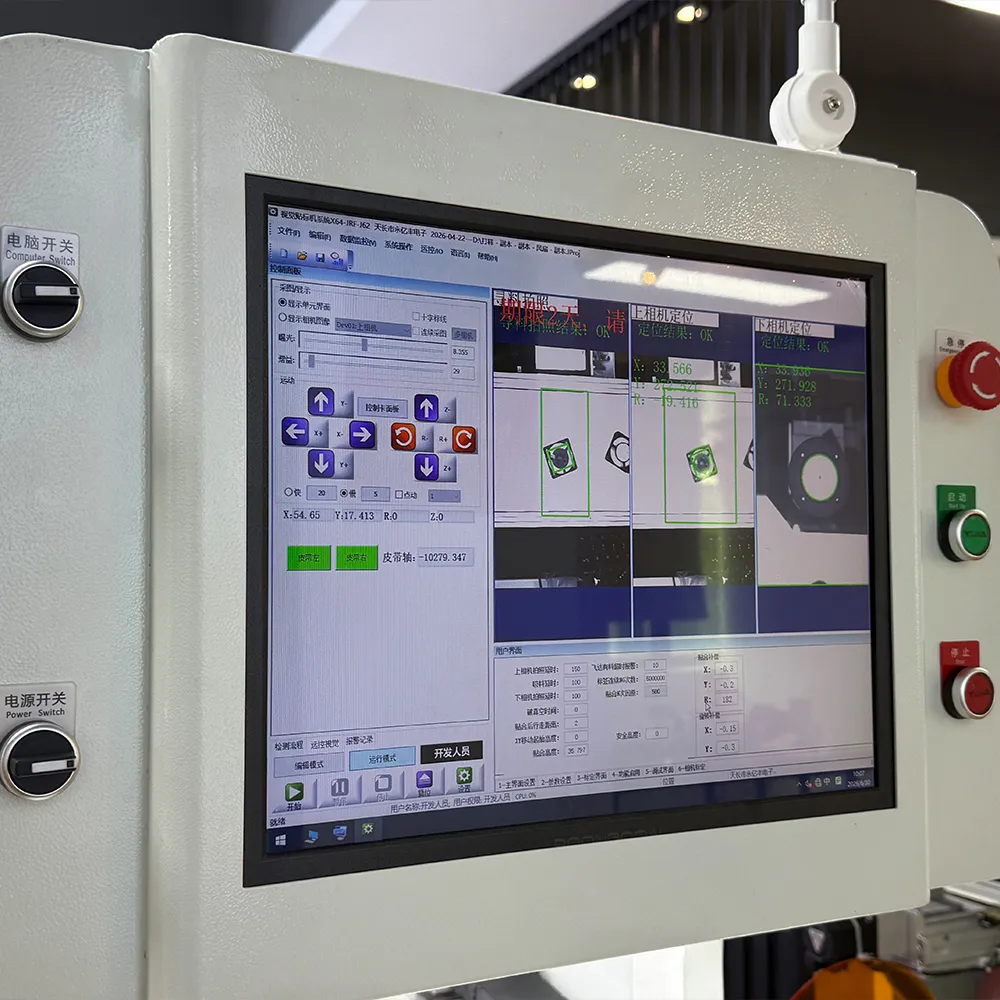

Move label	Conveyor belt	Control screen

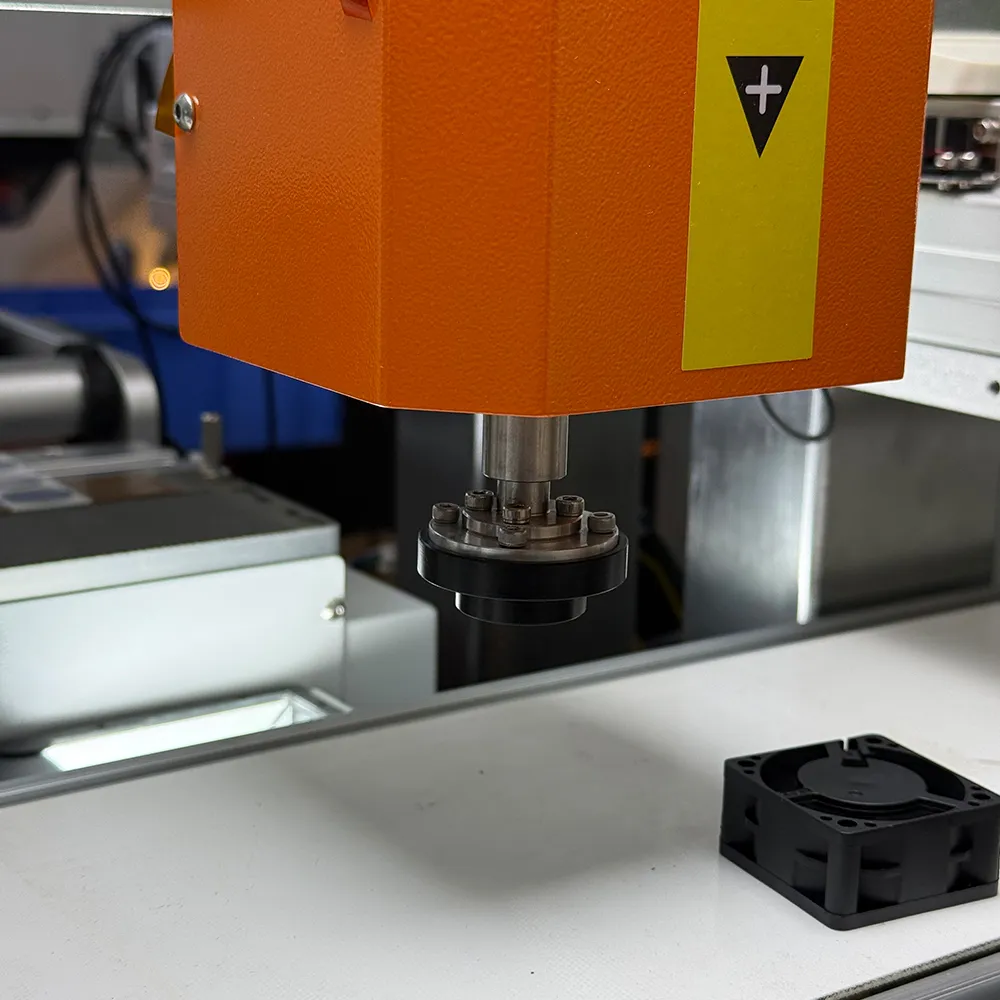

Suction tip

High Speed • High Precision • Fully Digital

Darui is a China-based technology-driven enterprise specializing in label printers and label post-press equipment that independently develops and manufactures such machinery and operates ts own label printing factory with over 20 years of Industry experience.

digital label finishing machine die cutting solution for labels


Move label	Conveyor belt	Control screen


Suction tip

Specifications

Model No.	V1
Labeling Accuracy	±0.1-0.2mm
Labeling Speed	1300-1800PCS/H
Applicable Product Sizes	Field of View 200 x 150 mm, label 60 x 90 mm
FeiDa Feeder	3-100x60mm
Conveyor Length	1300 x 150 mm, 60mm(Adjustable Height)
Dual Vision Lenses	6 Million Cameras And Lenses
Dimensions	About 1300x1350x1700mm
Voltage/Power	220V/50HZ/1.5KW
Weight	About 300kg
Labeling Mechanism	Single-head, Vacuum Suction
Air Pressure	0.5~0.8MPA

Support & Warrantyr

1-Year Warranty:
Peace of mind with coverage on all core components.
Global Technical Support:
24/7 access to our engineering experts to keep your production line Running
OEM/ODM Customization:
We provide non-standard customization service: extended conveyor line, double-head labeling structure, large-size label flying feeder, special light source for dark workpieces.

Specifications

Model No.	V1
Labeling Accuracy	±0.1-0.2mm
Labeling Speed	1300-1800PCS/H
Applicable Product Sizes	Field of View 200 x 150 mm, label 60 x 90 mm
FeiDa Feeder	3-100x60mm
Conveyor Length	1300 x 150 mm, 60mm(Adjustable Height)
Dual Vision Lenses	6 Million Cameras And Lenses
Dimensions	About 1300x1350x1700mm
Voltage/Power	220V/50HZ/1.5KW
Weight	About 300kg
Labeling Mechanism	Single-head, Vacuum Suction
Air Pressure	0.5~0.8MPA

Support & Warrantyr

1-Year Warranty:
Peace of mind with coverage on all core components.
Global Technical Support:
24/7 access to our engineering experts to keep your production line Running
OEM/ODM Customization:
We provide non-standard customization service: extended conveyor line, double-head labeling structure, large-size label flying feeder, special light source for dark workpieces.

Applicable Industries

3C Electronics:

Mobile phone shells, chargers, earphones, battery auxiliary parts labeling.

New Energy Industry:

Energy storage modules, cooling fans, battery silicone film lamination.

Automotive & Hardware:

Metal stamping parts, plastic auto accessories nameplate sticking.

Cosmetic & Toy:

Cosmetic packaging boxes, toy foam adhesive, plastic case back labels.

Die-cutting & Packaging:

All kinds of die-cut double-sided tape, PET protective film automatic attaching.
